VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Dallas, TX | Meridian Windows and Doors Dallas

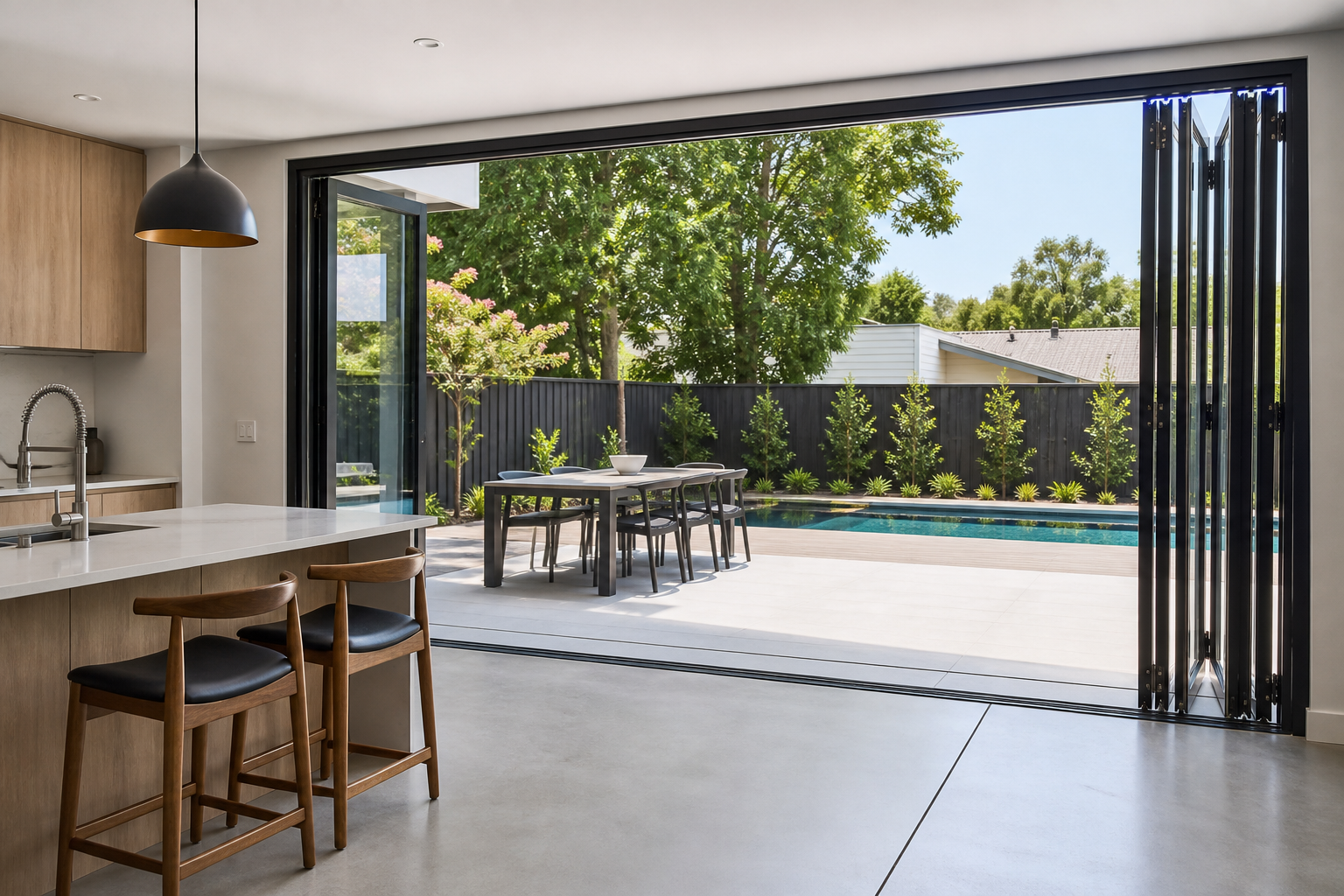

The VLX 100 bifold door is a floor-to-ceiling, wall-to-wall accordion system that folds panels flat against each other to open an entire wall of your home. For Dallas homeowners who want the patio, pool deck, or backyard to feel like part of the living room, this is the product that gets you there. Meridian Windows and Doors Dallas is an authorized ViewLux installation partner, which means you’re buying the product and the install from the same accountable team. We measure, order, install, and stand behind the finished opening. Call (325) 309-2639 to talk through your project and get a written line-item quote.

Call (325) 309-2639

Product Overview – VLX 100 Bifold / Folding Door

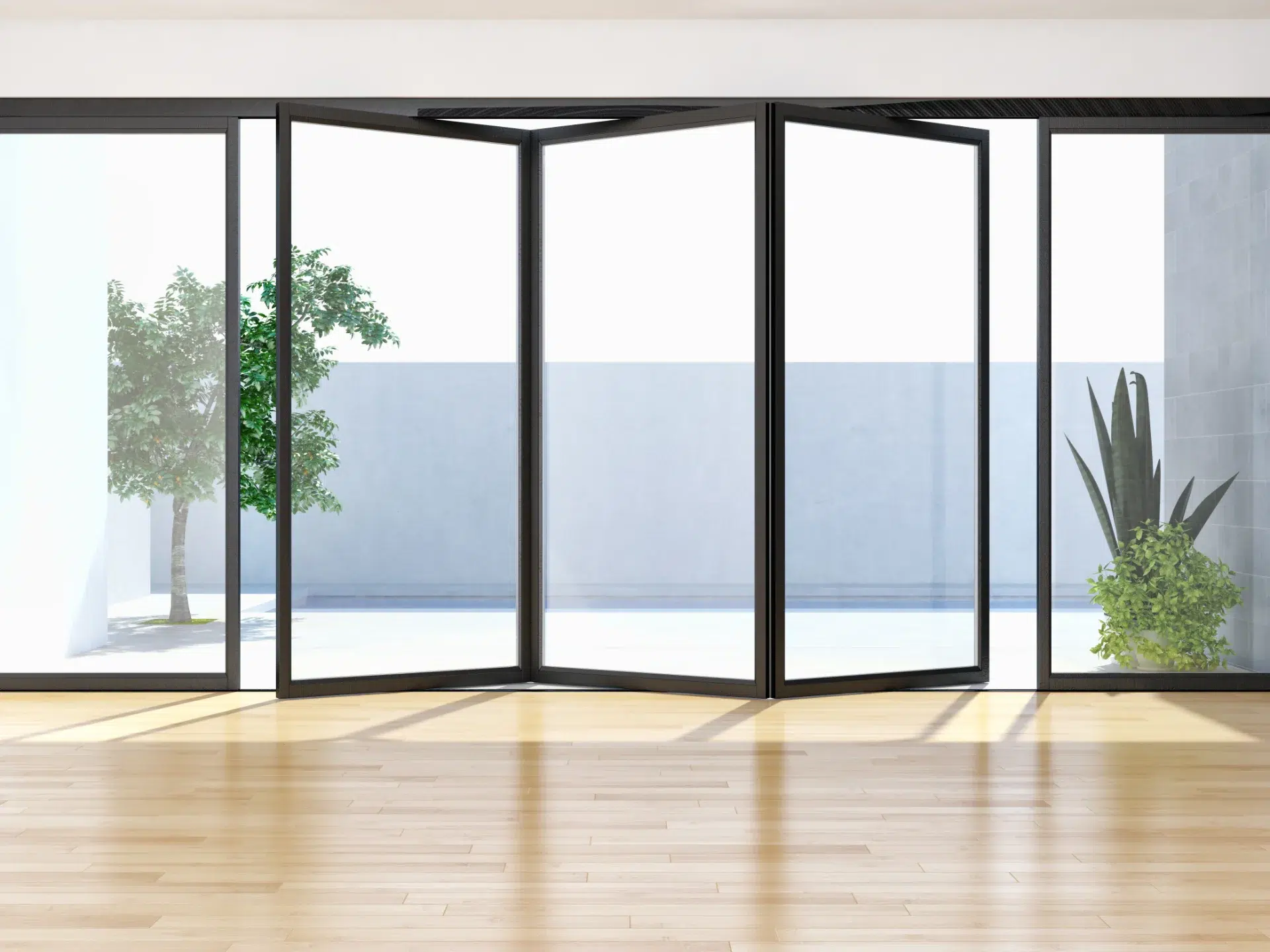

The VLX 100 is an aluminum bifold door built around one idea: when you want the wall gone, it should actually disappear. Panels fold in concert, stacking neatly to one or both sides, and the track system carries the weight so the door glides rather than drags. You get a clear opening up to 20 feet wide with no center post blocking the view, which is why this product shows up so often on modern farmhouse builds in Frisco, mid-century remodels in East Dallas, and new construction across Collin and Denton counties.

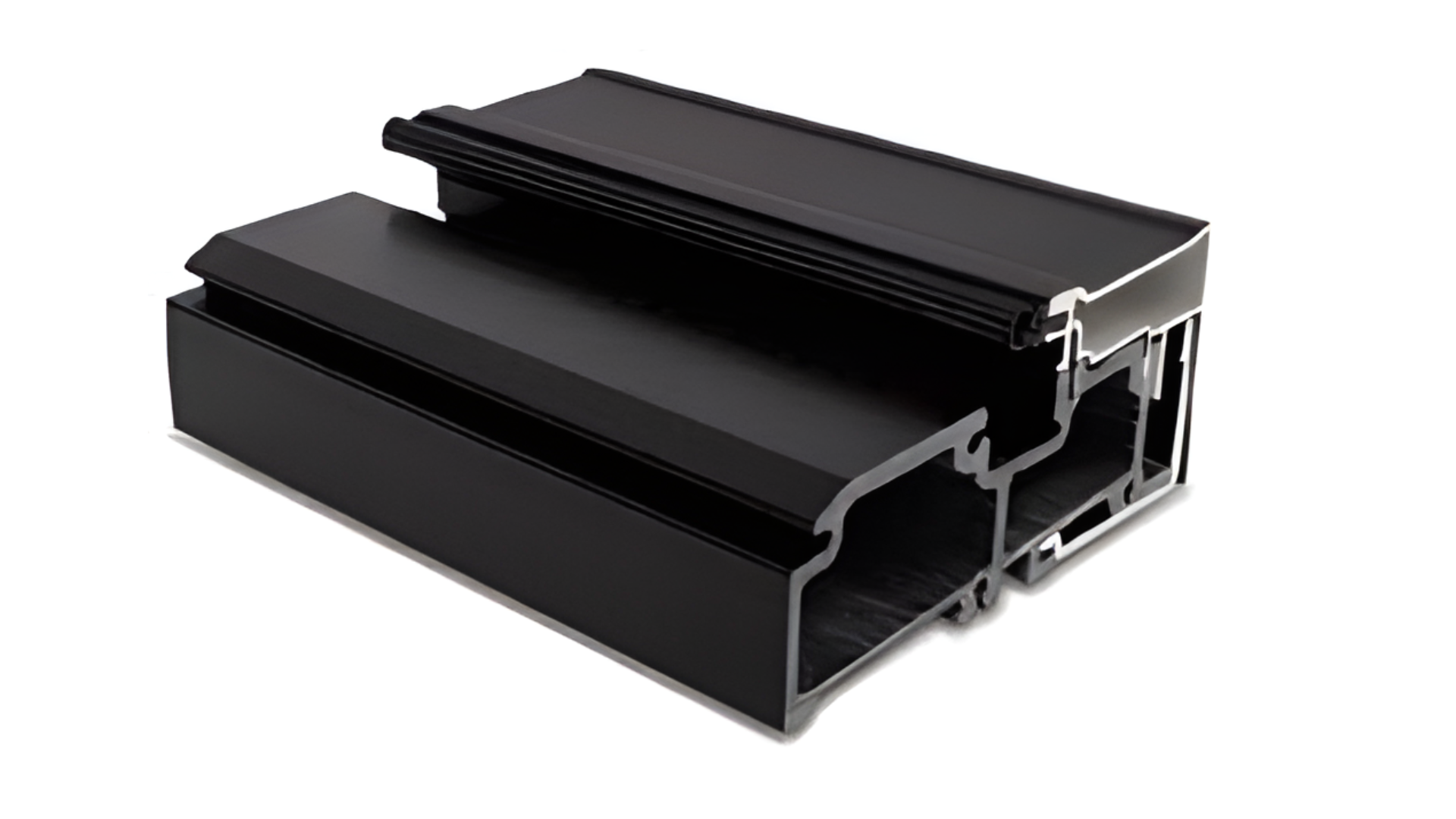

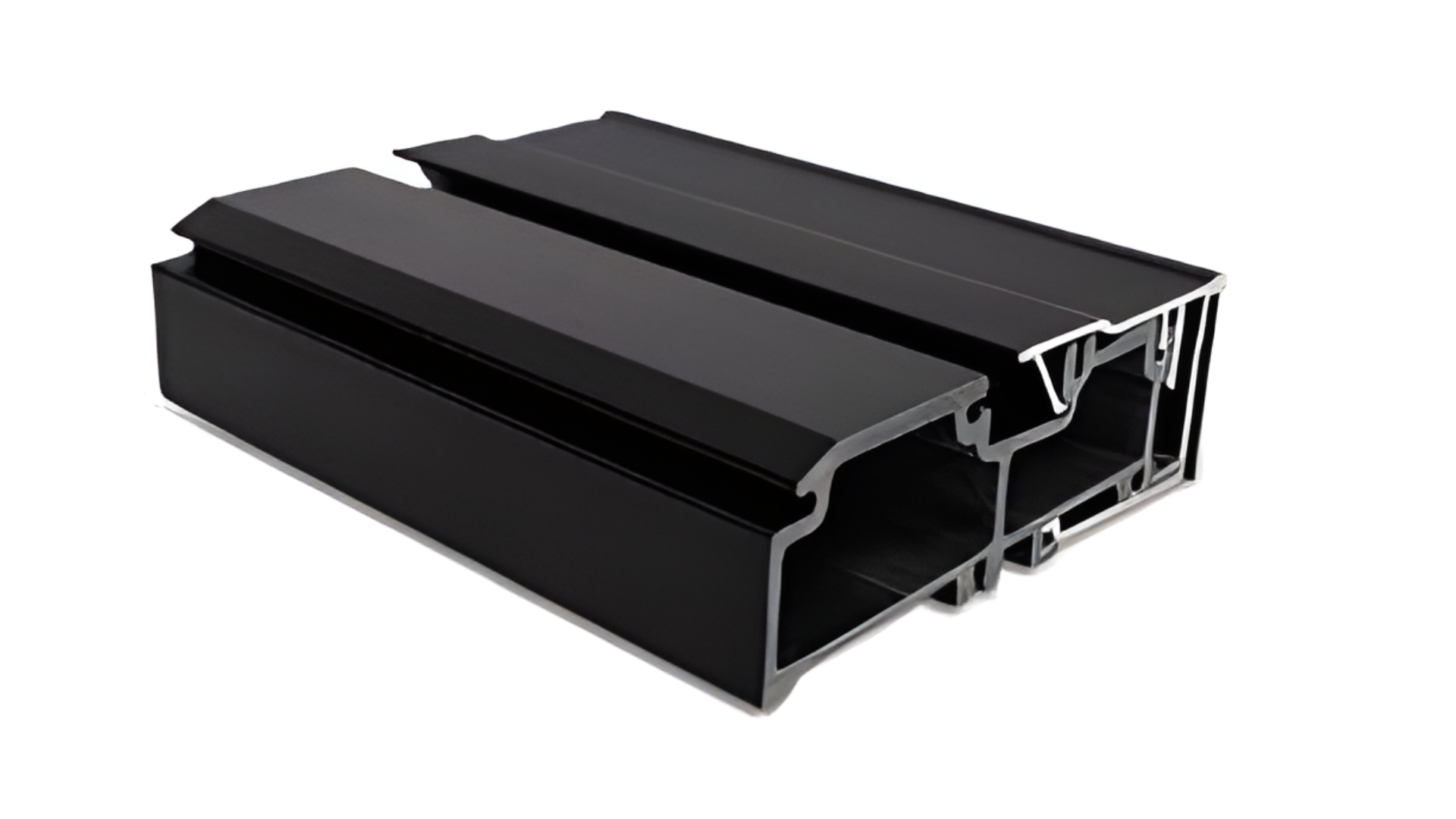

The frame is extruded aluminum with a profile width of 2.56 inches and wall thickness of 0.098 inches. That’s a sturdier cross-section than many entry-level bifolds on the market, and it matters in Dallas where we see real wind, hard sun, and the occasional hailstorm. The panels are thermally broken, meaning the inside and outside aluminum are separated to stop heat from conducting through the frame, which is the single biggest difference between an aluminum door that performs and one that makes your AC work overtime.

Buyers choose the VLX 100 because it holds a clean sightline without flexing. The panels stay square over years of operation because the hinge and roller hardware is designed to carry the panel weight continuously, not just at the corners. For a Dallas homeowner planning around a pool, an outdoor kitchen, or a covered patio, the VLX 100 creates the indoor-outdoor flow that a traditional sliding door simply cannot.

Technical Specifications

• Frame wall thickness: 0.098″ extruded aluminum
• Profile width: 2.56″
• Maximum span: Up to 20 feet wide
• Track configurations: 2-panel, 3-panel, 4-panel, 5-panel, 6-panel
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or none
• Performance standards: NFRC-rated thermal performance, AAMA 2400/2410 installation compliance, AAMA 812 perimeter sealant, wind-load rated for North Texas climate requirements

Performance Features

Thermal Efficiency
Thermal break technology separates the interior and exterior aluminum extrusions, cutting heat transfer through the frame. The VLX 100 carries NFRC-rated energy performance, and when paired with Low-E glass it keeps Dallas summer heat from radiating into the living space. This is the spec that keeps your July cooling bill from spiking when you add a 16-foot opening.

Acoustic Performance
The mass of the aluminum frame, combined with laminated glass when specified, reduces sound transmission through the opening. If you live off a busy corridor like Mockingbird Lane or near DFW flight paths, laminated glass on the VLX 100 makes a measurable difference in interior noise levels.

Airtightness & Weather Seal
Every panel-to-panel joint and panel-to-frame joint carries continuous weatherstripping, and Meridian Windows and Doors Dallas seals the perimeter with AAMA 812 low-expansion foam to close gaps that would otherwise leak conditioned air. The result is a closed door that performs more like a fixed wall than an operable opening.

Waterproofing
Dallas gets real rain, and a wide door opening is the most likely place for water to find a way in. The VLX 100 uses interlocking panel joints and a sill system designed to shed water outward, while the AAMA 2400/2410 compliant install adds the flashings and seals that keep the rough opening dry. We water-test every bifold install before we call the job done.

Wind Resistance
The 0.098″ wall thickness is a structural choice, not a marketing number. It allows the VLX 100 to carry larger panels and meet wind-load requirements for the Dallas-Fort Worth climate zone, where spring storms and straight-line winds put real lateral pressure on large openings.

Security & Hardware
Multi-point locking engages at the frame, not just at a single latch point, and the folding hardware locks panels in the closed position so the door cannot be forced at a hinge joint. Laminated impact-resistant glass is an available upgrade for buyers who want additional forced-entry and storm-debris resistance.

Color & Glass Options

Six finishes and six glass types give you enough range to match nearly any Dallas exterior. Premium Black is the most requested finish we order for modern builds and high-contrast white brick exteriors in Lakewood and the Park Cities. Pure White blends into painted trim and traditional elevations. Anodized Silver is a raw, industrial look that pairs well with limestone and steel accents. Bronze and Champagne warm up a facade without going full wood, and they hide dirt better than lighter finishes on homes near construction or red clay soil. Teak Wood gives the texture of timber with the dimensional stability of aluminum, which matters in a climate that swings from 105-degree summers to winter freezes.

On the glass side, Clear is the baseline. Low-E is the upgrade we recommend most often in Dallas for heat rejection on west-facing openings. Tempered meets code for any door glass, and Laminated adds sound and impact resistance. Gray Tint and Black Tint reduce glare and visible light transmission for rooms that get brutal afternoon sun. A retractable screen is a practical add-on for bug season when the door stays open in spring and fall.

Installation by Meridian Windows and Doors Dallas in Dallas

Most bifold door failures trace back to installation, not the product. A folding door that is set out of level or out of plane will bind, rack, and eventually pull the hardware out of the frame. The manufacturer warranty assumes a correct install, and if a non-authorized crew sets the door wrong, that warranty does not cover the repair. This is the reason Meridian Windows and Doors Dallas handles the entire job, from first measurement to final walkthrough, as a ViewLux authorized partner.

Our process starts with a pre-install inspection of the rough opening. We verify the header is sized correctly, the opening dimensions match the ordered configuration, and the substrate is dry and structurally sound. Then we set the frame level, plumb, and square using shimmed anchors, not foam alone. The perimeter gets AAMA 812 low-expansion foam sealant on every joint, followed by the flashing and trim package appropriate to your exterior cladding. We install to AAMA 2400/2410 standards, which means the opening is drained, sealed, and flashed the way the spec demands, not the way that is fastest.

Dallas-specific conditions matter here. Our freeze-thaw cycles, clay soil movement, and intense UV exposure all put stress on a large opening. We account for the slab slope, the porch overhang, and the prevailing wind direction when we set the sill and sequence the flashing. After the panels are hung and adjusted, we run a water test on the sill and threshold, cycle every panel, and walk you through operation and maintenance before cleanup. You get a written workmanship warranty from us, on top of the manufacturer warranty on the product.

Frequently Asked Questions – VLX 100 Bifold / Folding Door

Get a Quote – VLX 100 Bifold / Folding Door in Dallas

If you’re planning a new build, a remodel, or a patio upgrade in the Dallas area, we’ll measure your opening, walk you through panel configurations, finishes, and glass, and give you a written line-item quote with no change orders later. Estimates are free. Call (325) 309-2639 to start your project or schedule an on-site measurement with Meridian Windows and Doors Dallas.

Written by the team at Meridian Windows and Doors Dallas, serving Dallas, TX and the surrounding North Texas area.
