VLX 138 Panoramic Sliding Door

VLX 138 Panoramic Sliding Door in Dallas, TX | Meridian Windows and Doors Dallas

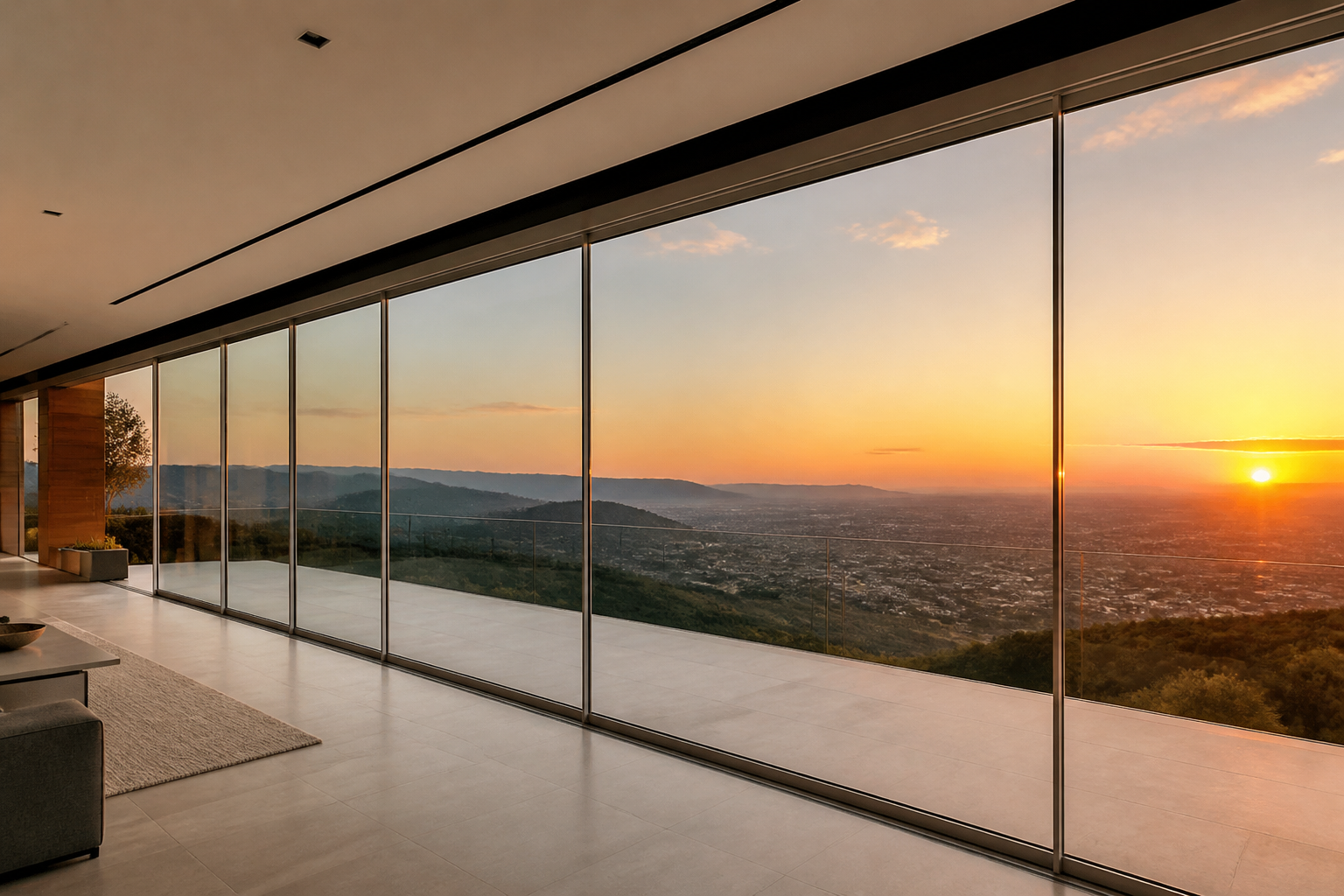

The VLX 138 Panoramic Sliding Door is what happens when someone asks, “How much glass can we put in this wall?” The answer, with this panel system, is up to 36 feet of it. You get a nearly uninterrupted wall of glass that slides open and closed on stainless bearings with almost no effort, even at massive panel weights. Meridian Windows and Doors Dallas is an authorized ViewLux installation partner serving Dallas, TX and surrounding areas, which means you’re buying from a company that has been trained, vetted, and held to the manufacturer’s installation standards. If you’re pricing a VLX 138 for a Dallas project, call (325) 309-2639 for a written, line-item quote. We never charge for the estimate.

Call (325) 309-2639

Product Overview – VLX 138 Panoramic Sliding Door

The VLX 138 sits at the top of the ViewLux sliding door lineup for one reason: span. This is the panel system you spec when a standard 12-foot slider feels cramped. The aluminum frame uses a wall thickness of 0.138 inches and a profile width of just 1.535 inches, which sounds slim until you see what it holds. The engineering puts the strength in the extrusion design and the hardware, not in bulky visible frame sections. That’s how you get the slim sightlines that make panoramic doors feel like a glass curtain instead of a door with glass in it.

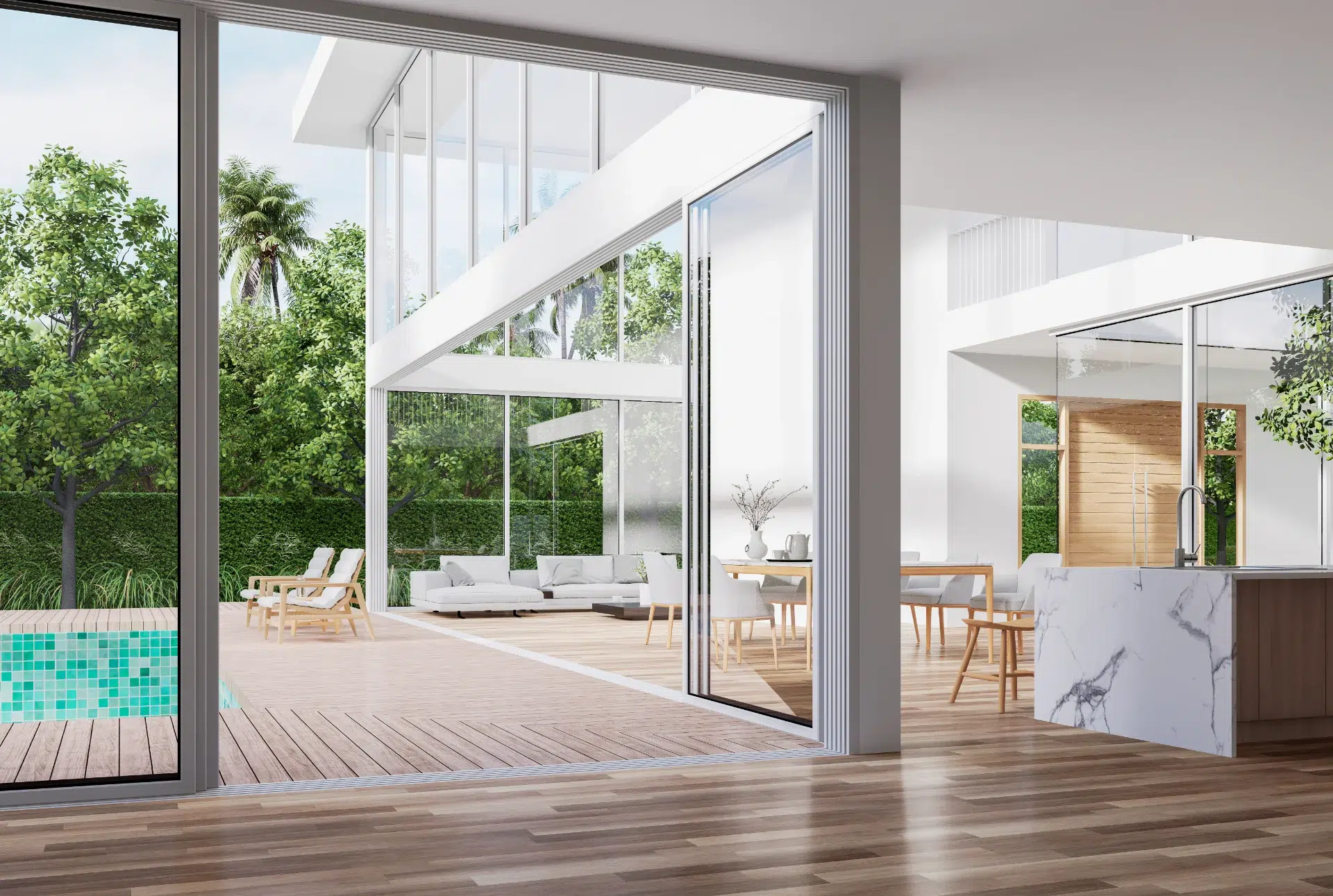

Where does this door belong architecturally? We’ve installed VLX 138 systems in Highland Park homes replacing entire back walls facing pools, in Lakewood mid-century remodels where the clients wanted the indoor dining room to become an outdoor patio in ten seconds, and in downtown Dallas high-rise units where the view of the skyline is the single most valuable asset the homeowner has. The door is designed for luxury large-span panoramic openings. It delivers expansive, uninterrupted views with an ultra-smooth glide on stainless bearings. If you’re building or renovating in Dallas, TX and the indoor-outdoor transition is part of the design conversation, this is the panel series the conversation usually lands on. It costs more than a standard slider. It does more than a standard slider. That trade is worth being honest about.

The materials matter in Dallas. We get freeze-thaw cycles in winter, triple-digit summer surface temperatures on sun-facing glass, and the occasional hail or high-wind event that separates good aluminum from cheap aluminum. The VLX 138 frame is engineered for thermal stability and deflection resistance under load. The stainless bearing system doesn’t corrode like cheaper rollers. In a Dallas climate where uncoated hardware gives out in five to eight years, that’s not a small detail. It’s the difference between a door that still glides in year twelve and one that needs a two-person push by year six.

Technical Specifications

Here are the numbers and options for the VLX 138 as we install it through Meridian Windows and Doors Dallas. These are the specs our team works from on every Dallas-area quote.

• Wall thickness: 0.138 inches. The extrusion gauge drives both structural capacity and thermal performance.
• Profile width: 1.535 inches. Slim sightlines, more glass per square foot of opening.
• Maximum span: Up to 36 feet wide, depending on track configuration and wind-load requirements for the specific Dallas property.
• Track configurations: 2-Track, 3-Track, and 4-Track. The 4-Track setup allows up to 75% of the opening to be clear when fully stacked.
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint. Low-E is the most common choice for Dallas sun exposure. Impact-resistant laminated glass is available as an upgrade.
• Color and finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. Powder-coated and anodized finishes are available depending on the color.
• Screen options: Retractable Screen or Sliding Screen, both integrated into the track system without adding visible frame bulk.

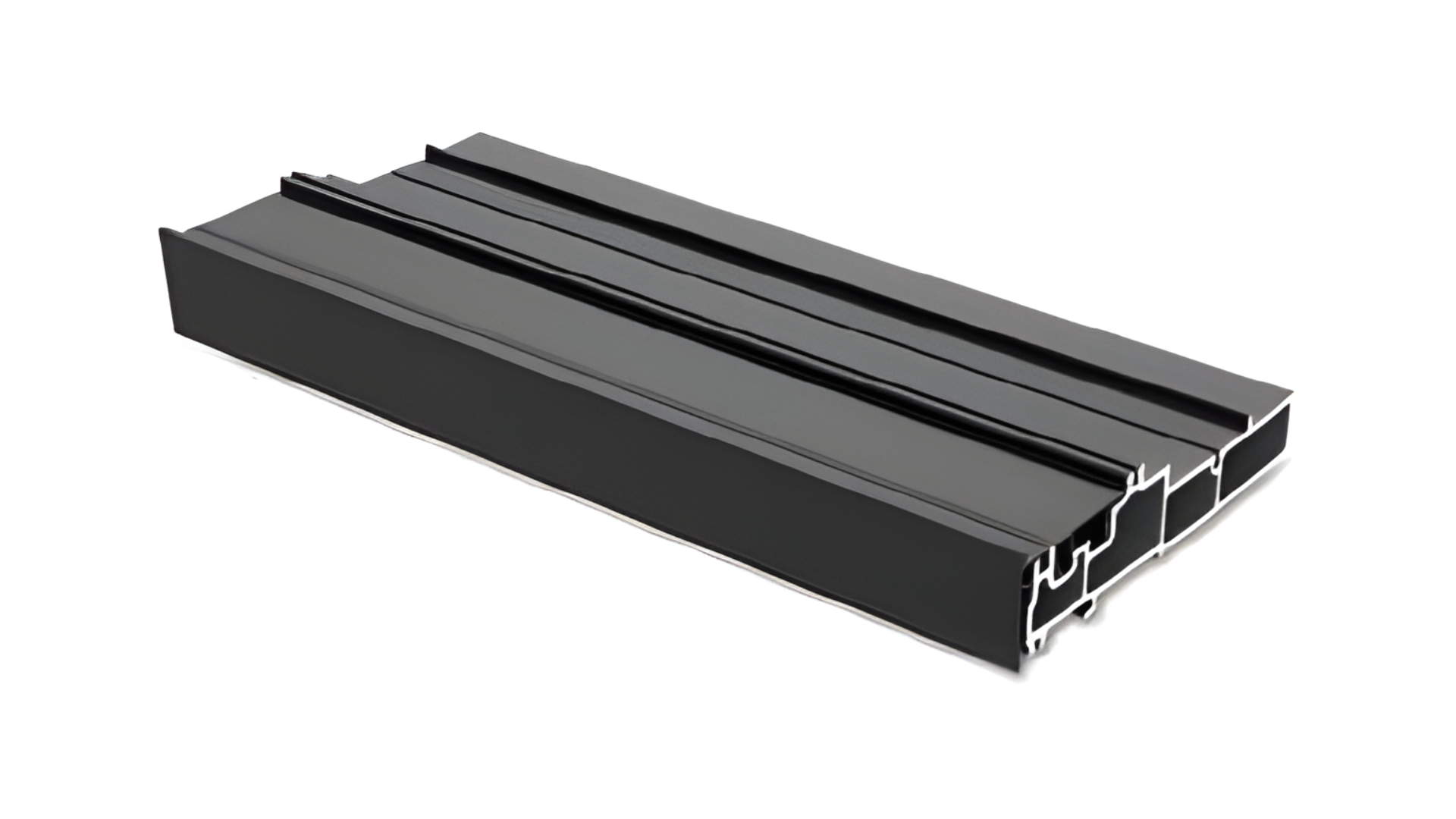

• Sill options: Flush Sill, Low-Profile Sill, or Recessed Sill. Recessed is popular in Dallas new construction where the flooring plane needs to continue seamlessly from interior to exterior.

Performance Features

These six performance areas are what we explain to every Dallas homeowner who asks, “Why shouldn’t I just buy a cheaper aluminum slider?” The short answer is that performance ratings are printed on paper, but you feel them in July and January.

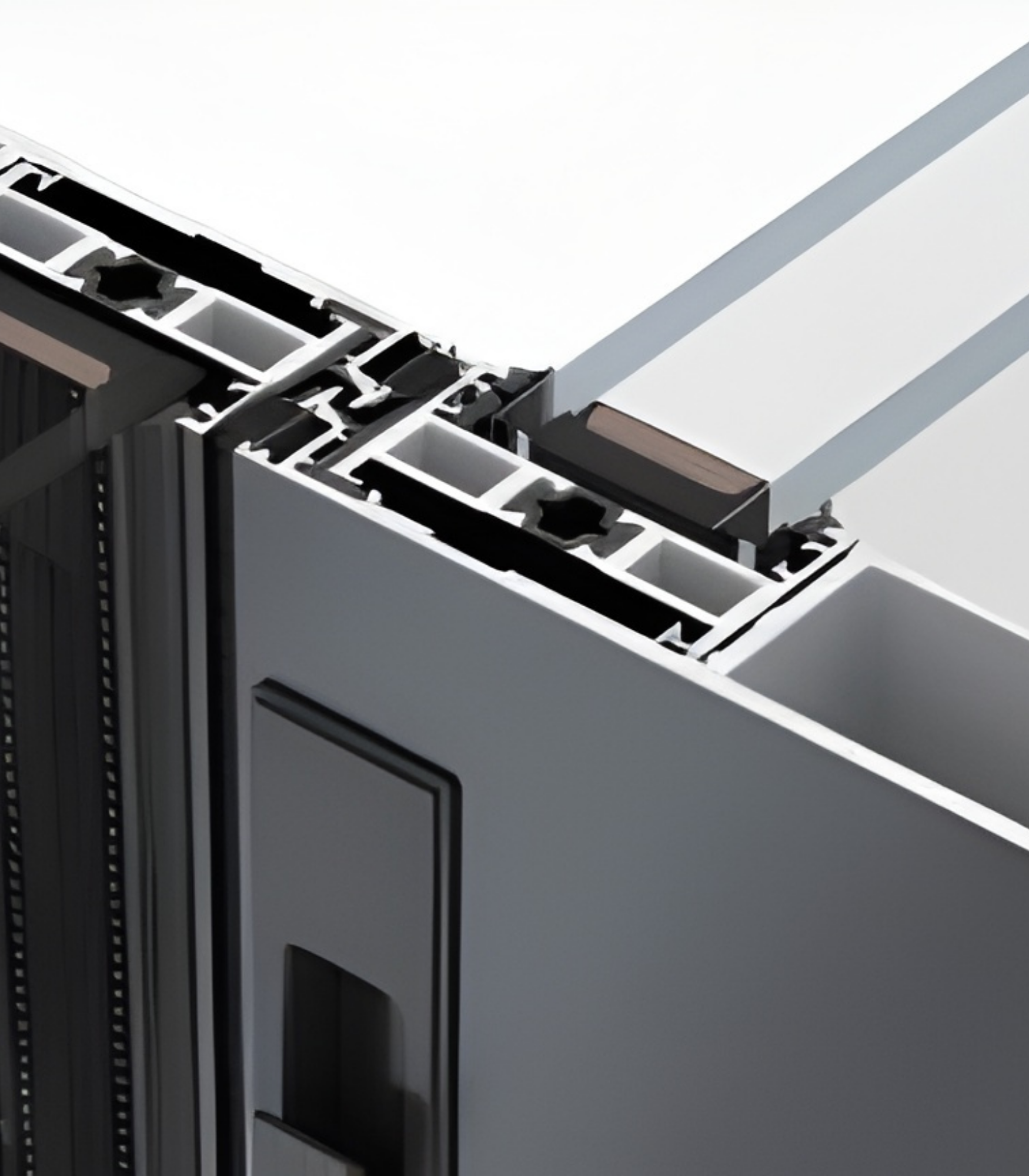

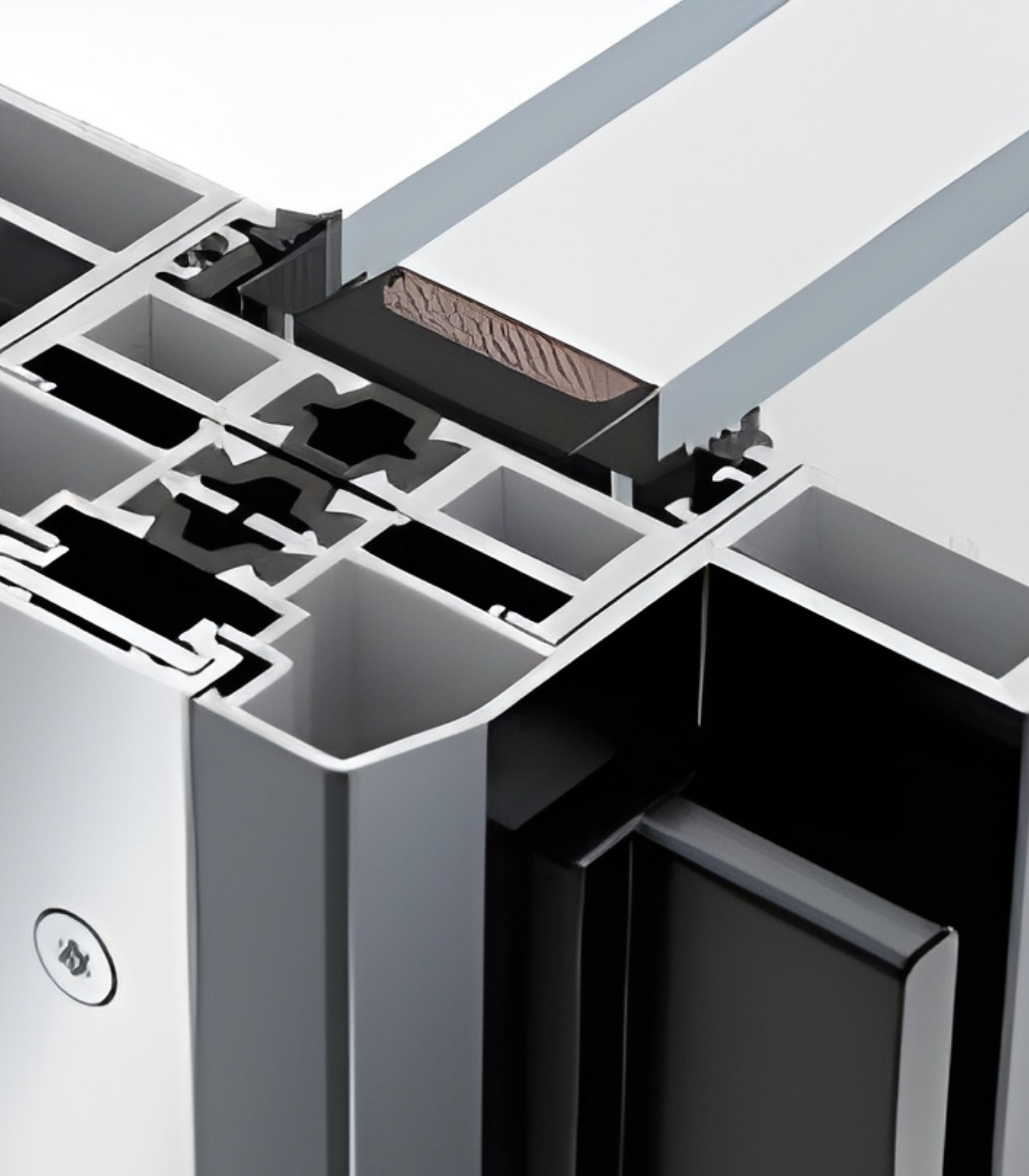

Thermal Efficiency. The VLX 138 uses a thermal break in the aluminum frame, the standard construction that separates interior and exterior metal to reduce heat transfer. NFRC-rated performance data is available for each glass and frame combination. In Dallas, TX, a thermally broken frame paired with Low-E glass is what keeps an air-conditioned room from leaking hundreds of dollars a month through the frame itself.

Acoustic Performance. The same multi-layer glass and sealed airspace that slows heat transfer also cuts noise. We regularly hear from Dallas homeowners near the Tollway, Lovers Lane, or Mockingbird Station who notice the sound difference immediately after replacing an older sliding door. The VLX 138 with sound-control glass options delivers a meaningful drop in perceived road noise, even during rush hour.

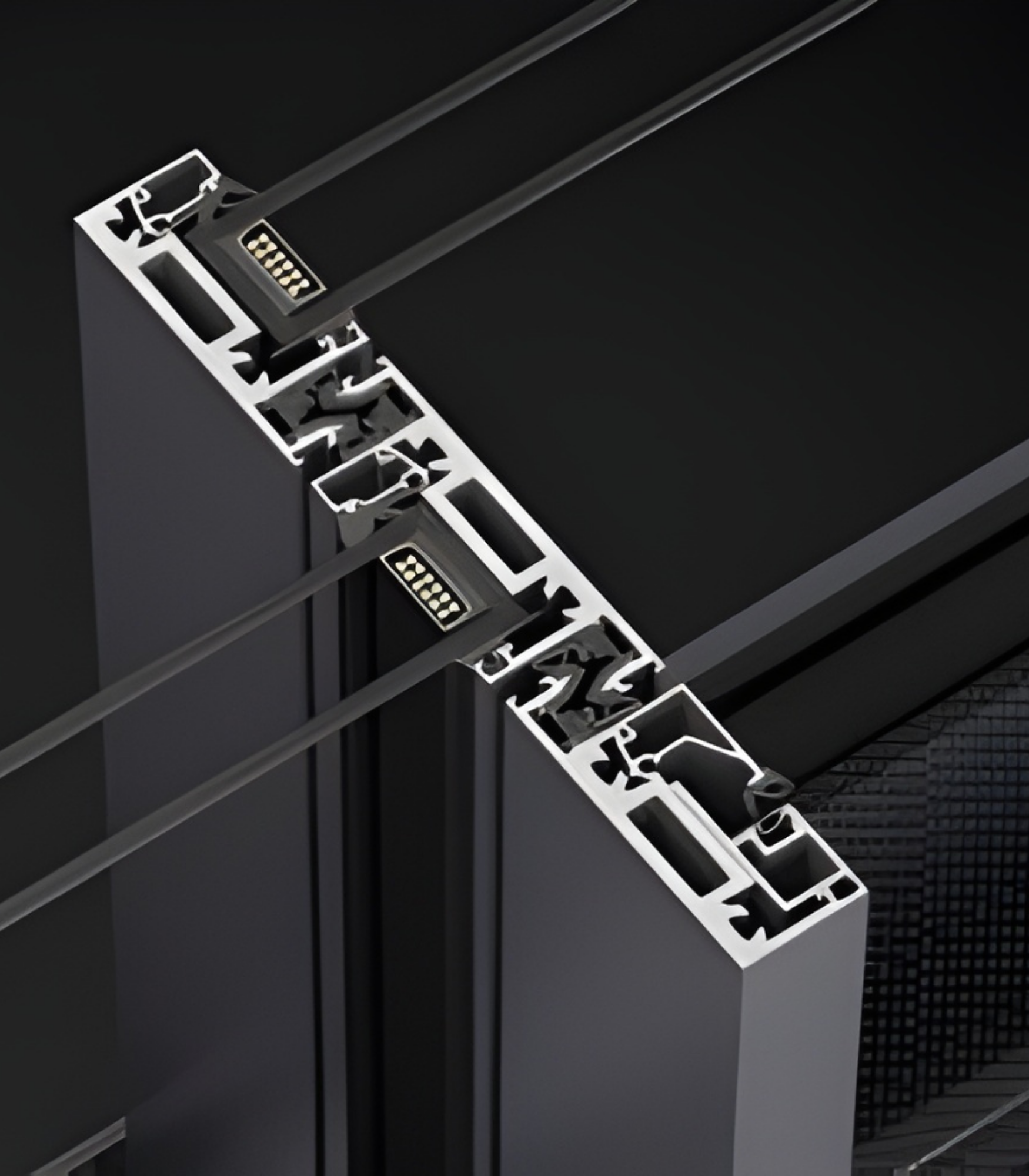

Airtightness & Weather Seal. The panel interlock and perimeter gaskets are engineered to seal tightly when closed. That’s not just about drafts. In Dallas, a door that leaks air also lets in dust, pollen, and the fine particulate that makes spring miserable for allergy sufferers. The tighter the air seal, the more stable the indoor environment stays.

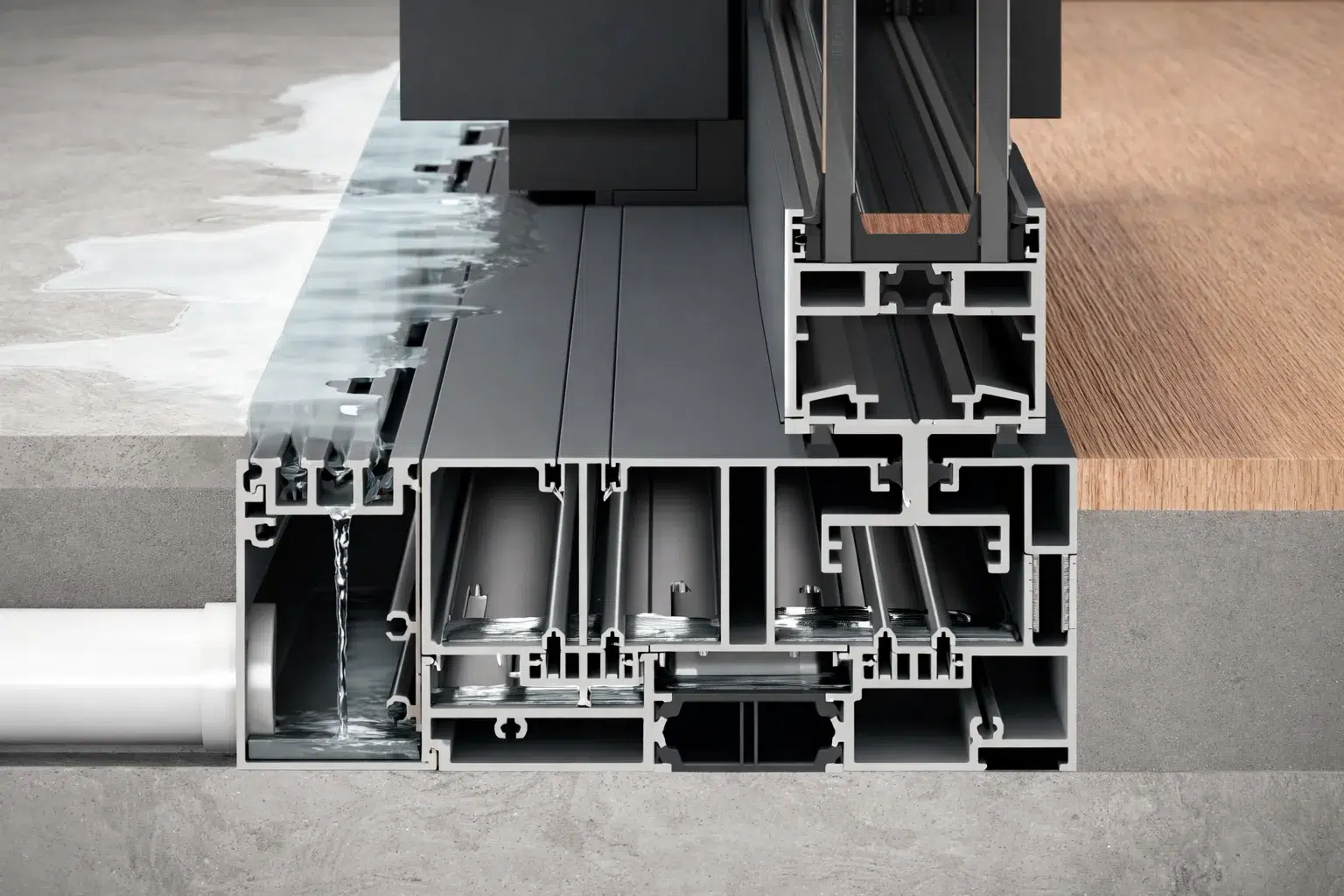

Waterproofing. Aluminum doors in North Texas have to handle sudden, heavy downpours. The VLX 138 is built with engineered drainage channels that direct water away from the interior rather than trapping it in the track. Correct sill selection matters here. We spec the appropriate sill option for each Dallas installation based on the exposure, slope, and whether the opening is covered or unprotected.

Wind Resistance. Wind-load rating is not a marketing bullet point in Texas. It’s a building department requirement. The VLX 138 is wind-load rated for local climate requirements, and we confirm that rating against the specific property’s exposure category during the pre-install inspection. Impact-resistant laminated glass is available for Dallas homeowners who want storm protection beyond the base rating.

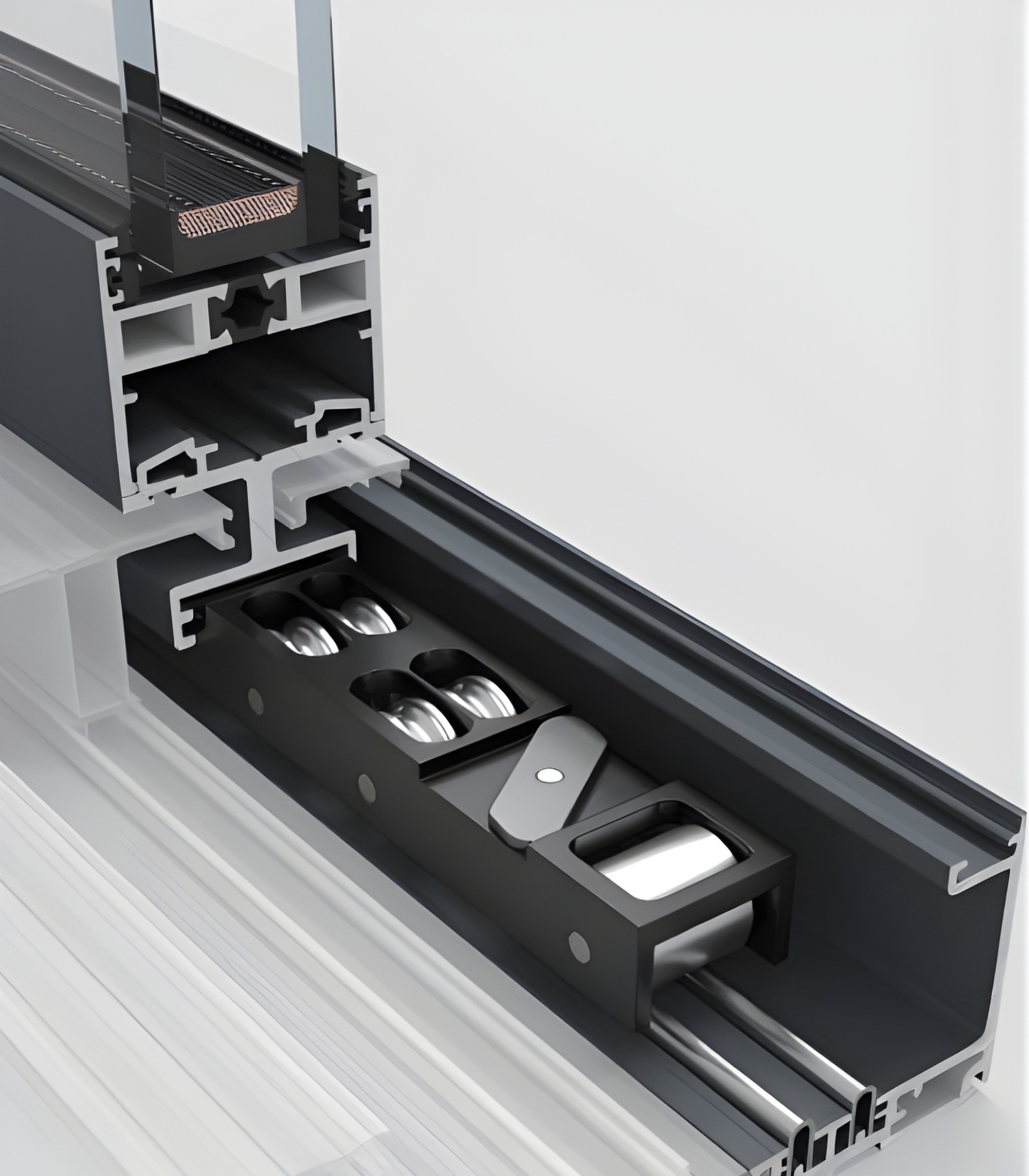

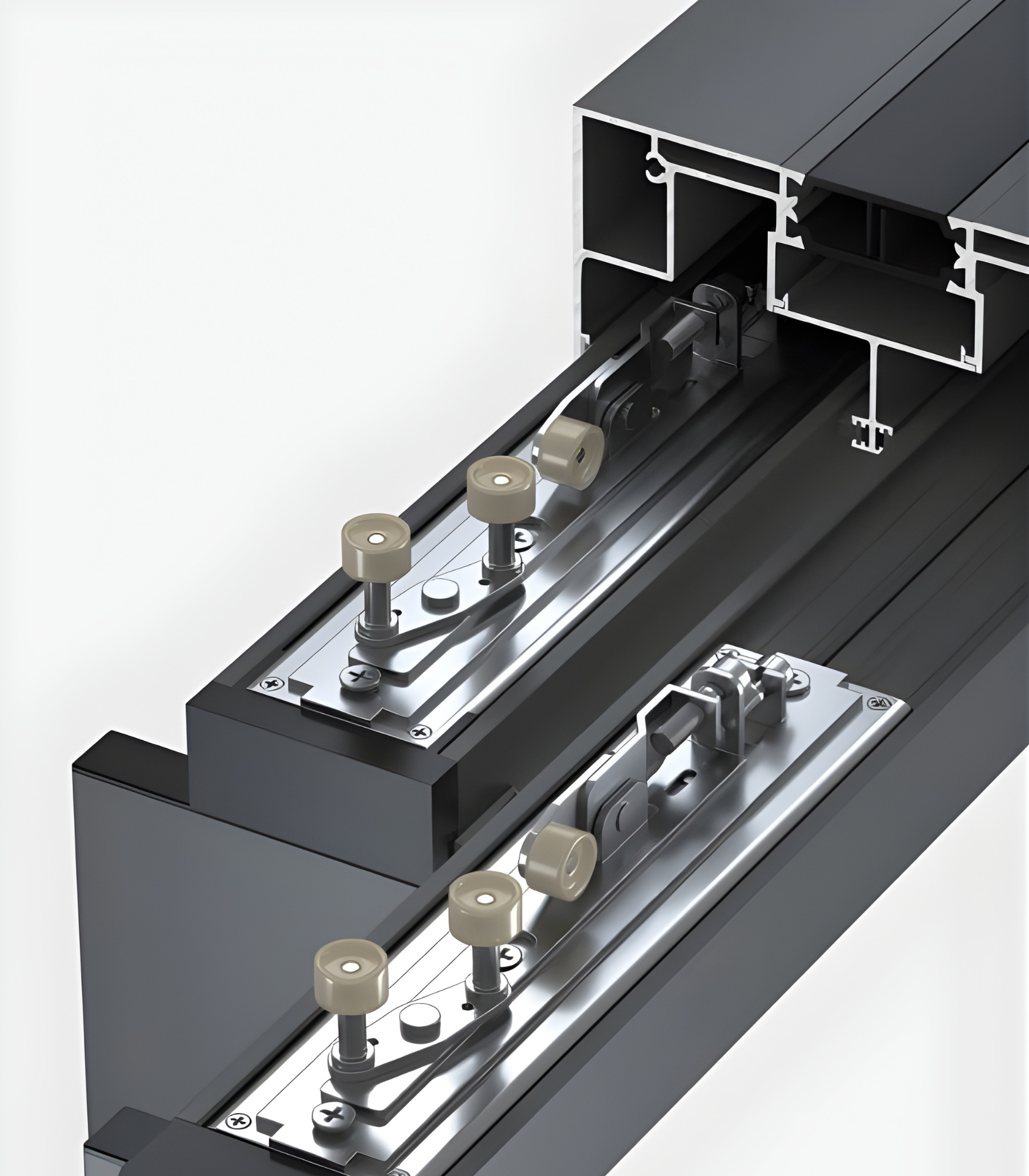

Security & Hardware. The multi-point locking hardware engages at the full height of the panel, not just a single latch. The stainless bearing system carries panel weight without sagging over time, which keeps the lock alignment accurate year after year. A slider that sags is a slider that no longer locks right. The VLX 138 hardware is built to avoid that failure mode.

Color & Glass Options

The finish on an aluminum sliding door is not just paint. It’s a polyester powder coat or anodized layer that has to survive Texas sun without fading, chalking, or peeling. The VLX 138 is offered in Premium Black and Pure White, the two most requested finishes in modern Dallas architecture, as well as Anodized Silver for a cooler metallic profile. Bronze and Champagne are the picks we spec most often on traditional or transitional homes in neighborhoods like Preston Hollow and Lakewood, where a warmer frame color sits better with existing brick and limestone. Teak Wood is the surprise option: a wood-look finish that gives you the warmth of timber without the maintenance. It’s a popular choice in Dallas, TX households that love wood windows but don’t want to deal with wood rot, repainting, or the warping that North Texas humidity can cause on real wood frames.

Glass selection is driven by sun orientation and privacy. Low-E is the default recommendation for west-facing and south-facing openings in Dallas, where afternoon heat gain is the biggest energy load. Clear glass makes sense on shaded north-facing walls or when the view is the absolute priority. Frosted and Obscure are used for bathrooms, bedroom corridors, or any interior partition where light should pass through but sightlines shouldn’t. Black Tint and Gray Tint are popular in contemporary Dallas lofts and high-rise units, where the tint cuts glare and adds visual weight to the facade.

Installation by Meridian Windows and Doors Dallas in Dallas

A panoramic sliding door that spans 20, 30, or 36 feet lives or dies by the installation. The door may be perfectly square off the factory floor. If the rough opening isn’t level, the panels bind. If the framing isn’t plumb, the locks don’t engage. If the perimeter seal fails, water finds its way in during the first hard Dallas storm.

Meridian Windows and Doors Dallas installs every VLX 138 system according to AAMA 2400 and AAMA 2410 standards, the recognized installation guideline for fenestration in commercial and residential openings. Our process starts with a pre-install inspection of the rough opening, checking dimensions, condition of the substrate, and verifying that the structure is ready to carry the panel weight and wind load. We set the frame level, plumb, and square before anchoring. We use AAMA 812-rated low-expansion foam sealant on every perimeter joint, the material standard that prevents air and water intrusion without expanding with enough force to bow the aluminum frame. After installation, we run a water test on the sill and lower corners, confirm panel travel and lock engagement across every panel, and clean the job site completely. The old door, the packaging, the debris. It’s all gone.

Why does any of this matter to a Dallas homeowner buying a VLX 138? Because the manufacturer’s warranty covers the door. It does not cover an installation done wrong by a generalist contractor who’s never hung a heavy aluminum slider. Improper installation voids the warranty. When you hire Meridian Windows and Doors Dallas as your authorized ViewLux installation partner in Dallas, TX, you’re keeping the warranty intact and putting the install in the hands of a company that does this specific type of work every week. Dallas has its own set of building department requirements depending on your municipality, and Dallas’s wind and storm exposure shapes which sill, glass, and drainage specifications are appropriate for your particular home. We handle that on every project.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

What is the lead time for the VLX 138 Panoramic Sliding Door? Most VLX 138 orders through Meridian Windows and Doors Dallas arrive in 4 to 6 weeks from approval of final shop drawings, though custom finishes or oversized panel configurations can extend that window. We confirm exact lead times at quote, and we coordinate installation scheduling around the delivery date so your Dallas project doesn’t stall waiting on the door to arrive.

Does the VLX 138 qualify for energy tax credits? That depends on the specific glass package and the current federal and Texas incentive programs at the time of purchase. Low-E, thermally broken configurations typically meet or exceed the energy performance thresholds required for residential energy credits. Call (325) 309-2639 and we can run the numbers for your specific glass selection and give you a straight answer before you commit.

What warranty comes with the Panoramic Sliding Door? The VLX 138 carries a manufacturer’s warranty through ViewLux covering the aluminum frame, finish, and hardware, with the specific term and coverage detail provided in writing at your quote. The warranty stays valid when the door is installed by an authorized installation partner following AAMA installation standards. That’s what Meridian Windows and Doors Dallas does. We’ll walk you through exactly what’s covered at the time of purchase.

Can I customize the size? Yes. The VLX 138 is built to your opening dimensions up to its maximum span of 36 feet, in 2-Track, 3-Track, or 4-Track configurations. Panel count, panel width, and stacking direction are all specified per project. During the free on-site measurement in the Dallas area, we confirm the actual rough opening measurements and finalize the design around your structural constraints rather than forcing a stock size into a custom opening.

How do I maintain aluminum frames? Wash the frames and tracks with mild soap and water two to four times a year, keep the bottom track clear of dirt and leaves, and lubricate the bearings per the manufacturer’s schedule. In Dallas, spring pollen and summer dust accumulate quickly, so homes near busy roads or construction may need more frequent track cleaning. If a panel ever starts to drag or stick, call us before forcing it. Forcing a misaligned panel on the VLX 138 can damage the stainless hardware, and that’s a repair that’s cheaper when caught early.

Get a Quote – VLX 138 Panoramic Sliding Door in Dallas

If you’re planning a panoramic opening in Dallas, TX and want to know what the VLX 138 will cost for your specific project, call Meridian Windows and Doors Dallas at (325) 309-2639. We’ll schedule a free on-site measurement, review glass, finish, track, and sill options, and provide a written line-item quote with no obligation. Estimates are always free, and you’ll speak with the team that actually installs the door.

Written by the team at Meridian Windows and Doors Dallas, serving Dallas, TX and surrounding areas as an authorized ViewLux installation partner.
