VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Dallas, TX | Meridian Windows and Doors Dallas

The VLX 100 Swing / Entry Door is a modern aluminum entry system built for homeowners who want clean sightlines without sacrificing security or energy performance. It’s a single-entry door with a slim 2.56-inch profile that puts more glass in the opening and less frame in your way. We install this door across Dallas, TX, from Lakewood to Preston Hollow to Bishop Arts, and as an authorized ViewLux installation partner, our crews are trained on this exact product line. You get the manufacturer’s engineering plus a local team that stands behind the install. Call (325) 309-2639 to talk pricing or schedule a free measurement.

Call (325) 309-2639

Product Overview – VLX 100 Swing / Entry Door

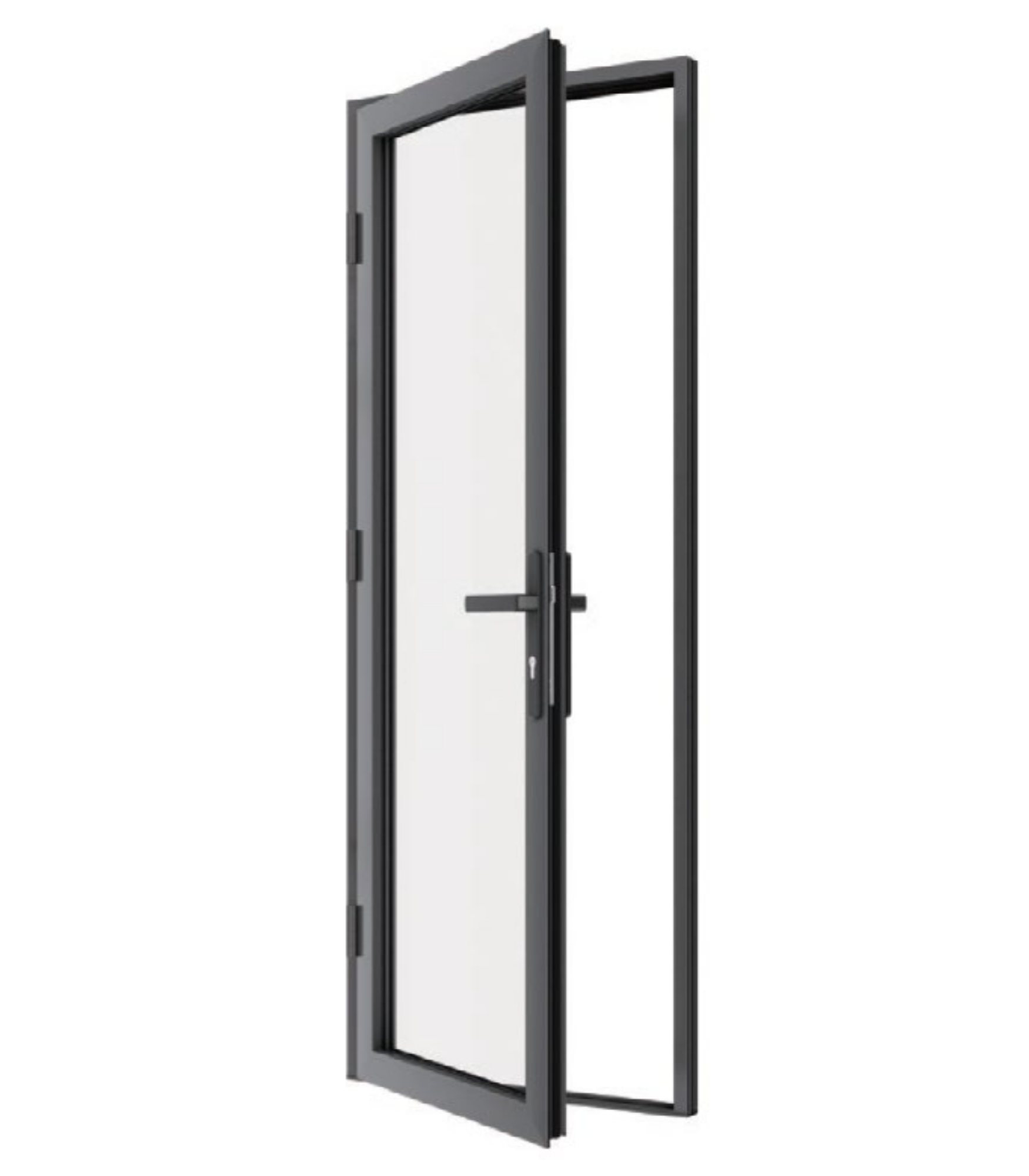

The VLX 100 is a modern aluminum swing door, a single entry system with a minimalist frame and multi-point locking. It’s engineered for people who want the entry to be a statement without being fussy. The frame is lean, the hardware is quiet, and the door feels substantial when it closes. Aluminum is the right material for Dallas for one simple reason: it doesn’t warp. Wood doors in North Texas fight humidity swings every single year, swelling in spring rains and shrinking through August heat. The VLX 100 doesn’t move. Our team at Meridian Windows and Doors Dallas has installed this door on mid-century ranches in Richardson, new builds in Frisco, and townhomes in Uptown Dallas, and it reads well in every context.

What separates this door from budget aluminum products is the frame depth and wall thickness. The extrusion walls measure 0.098 inches, which is thicker than what you’ll find on most entry-level systems. That extra material translates to a stiffer frame, better hardware retention, and a door that holds its alignment over thousands of open-and-close cycles. The multi-point locking system engages at the top, middle, and bottom of the door leaf, so instead of one latch doing all the work, the entire edge of the door locks into the frame. It’s the kind of hardware you stop noticing after a week, but it’s also the kind you’ll appreciate every time a storm front pushes through Dallas and the door doesn’t rattle.

Technical Specifications

Here’s what the VLX 100 Swing / Entry Door brings to the table, in plain terms. If you want the full NFRC or AAMA test paperwork, call us and we’ll pull it for your project.

• Wall thickness: 0.098-inch aluminum extrusion walls. That’s nearly a tenth of an inch of solid metal in the frame, which is why this door feels different when you push against it.
• Profile width: 2.56 inches. Slim enough to maximize glass area, wide enough to house the thermal break and multi-point lock hardware cleanly.
• Maximum span: Up to 48 inches wide for a single leaf. If your rough opening is wider than that, we’ll look at a different configuration, but this covers most front entries in Dallas homes built from the 1950s forward.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated. Mix and match, like tempered Low-E for your main panel with a frosted sidelight if you’re pairing it with fixed glass.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. Powder-coated finishes on the first two, anodized on the silver, and wood-grain powder coats on the Teak for the look of wood without the maintenance.
• Screen options: Retractable screen or no screen. The retractable is nice for fall evenings in Dallas when you want the breeze without the mosquitos.
• Installation standards: Installed per AAMA 2400/2410, with AAMA 812 low-expansion foam sealant on every perimeter joint.

Performance Features

Thermal Efficiency. The VLX 100 uses a thermal break, a non-conductive barrier between the interior and exterior aluminum, so the frame doesn’t act as a heat bridge. Add Low-E glass and this door holds conditioned air in through every Dallas summer. NFRC-rated performance is available for the exact glass package you choose.

Acoustic Performance. The same tight tolerances that keep air out also cut sound. Homes near Central Expressway, Mockingbird Station, or Love Field flight paths notice the difference immediately. Laminated glass steps the noise reduction up further, and it’s a common request on our Dallas installs.

Airtightness & Weather Seal. Every perimeter joint gets AAMA 812 low-expansion foam sealant during installation, and the door leaf seats into a full weather gasket system. No air leaks at the sill corners, no dust intrusion during those dry, windy Dallas springs.

Waterproofing. The sill is designed to shed water outward rather than trap it, and the perimeter seal keeps wind-driven rain from working behind the frame. We test every install with a water check before we pack up. Standing water from a North Texas thunderstorm should never be your entry door’s problem.

Wind Resistance. The 0.098-inch wall thickness and multi-point lock engagement mean this door is wind-load rated for North Texas conditions. When the National Weather Service is tracking a squall line through Dallas County, you want an entry door that’s more interested in holding the line than letting the wind find its way around the seals.

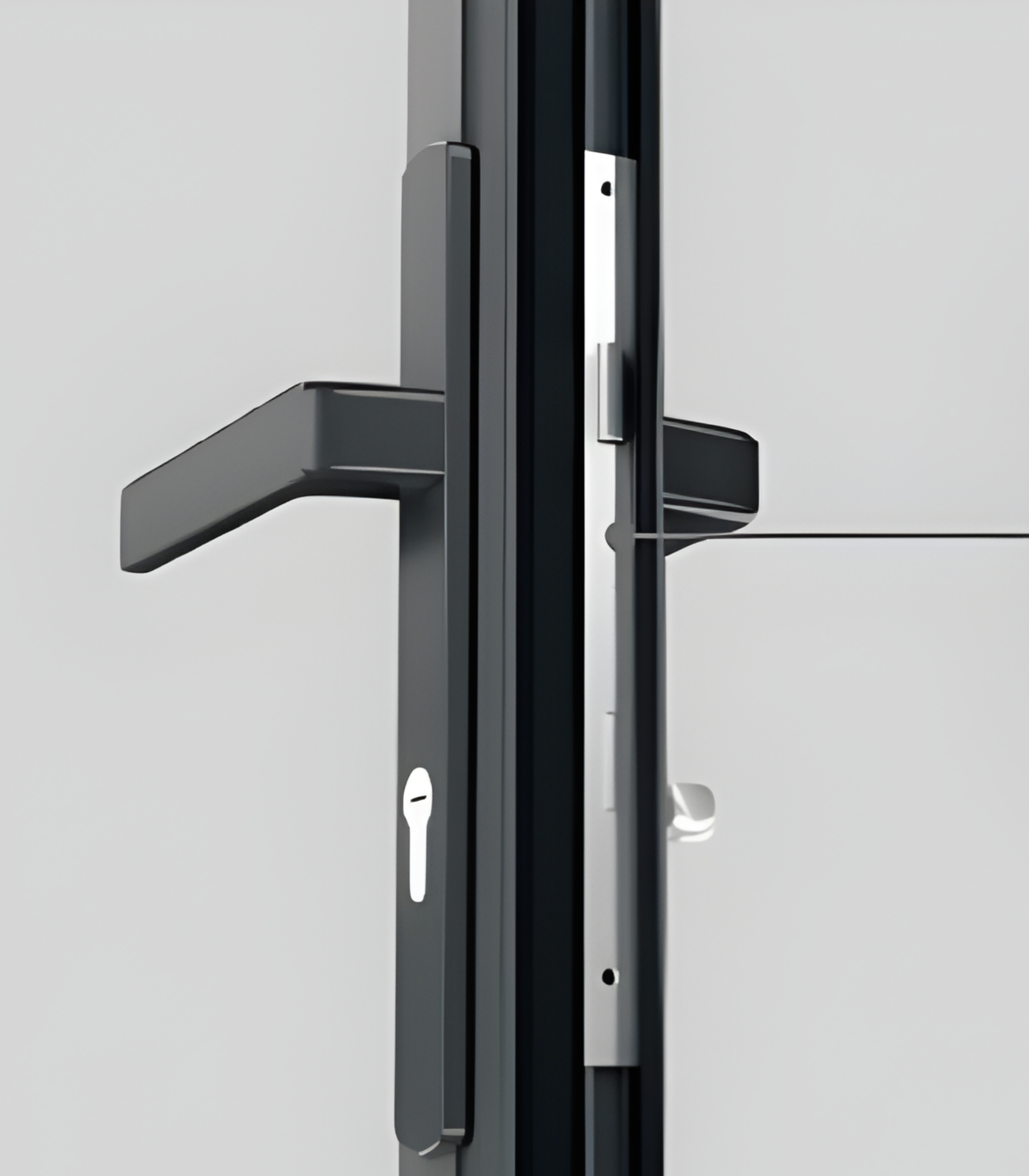

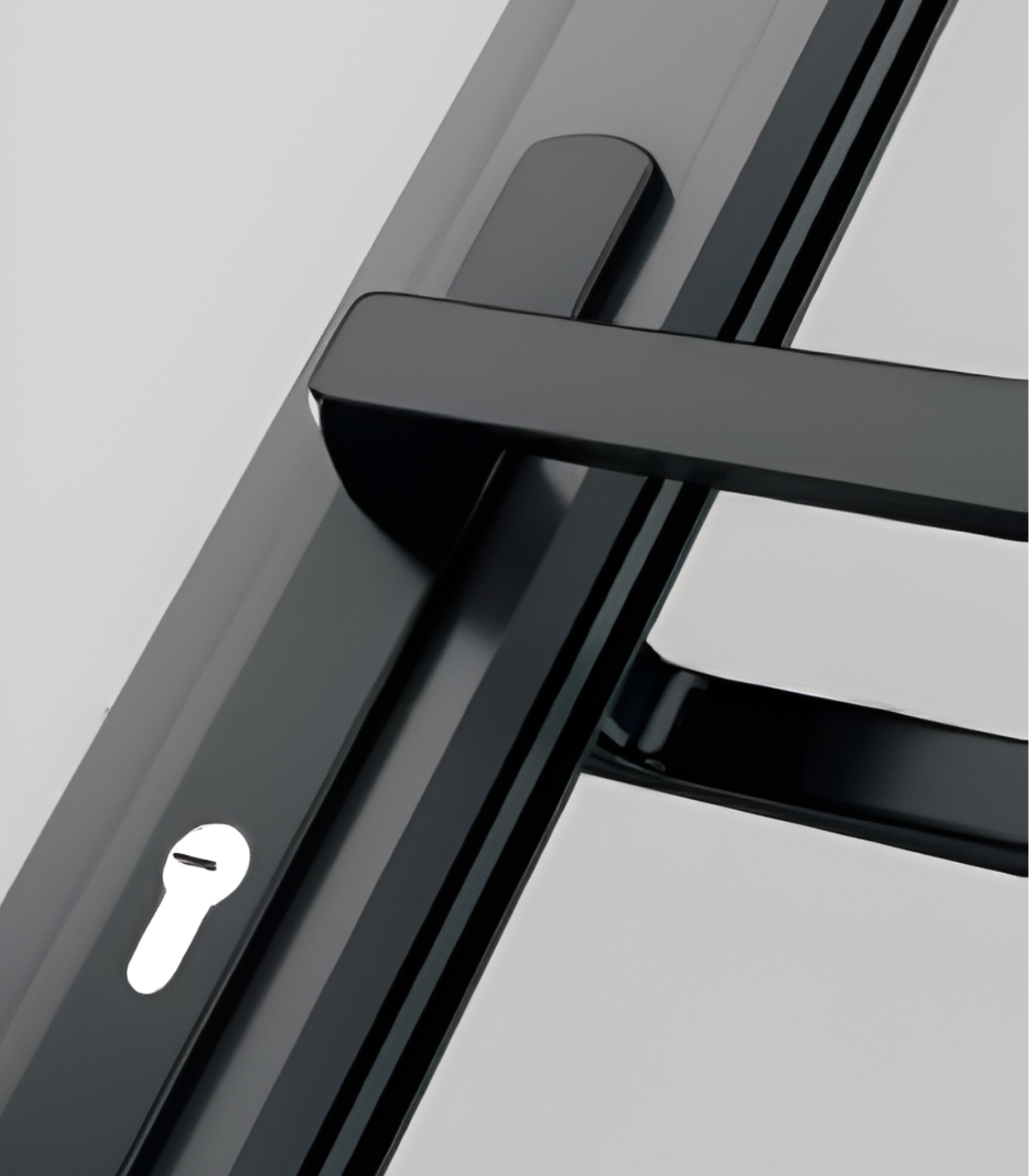

Security & Hardware. Multi-point locking means the door is secured to the frame at three separate points along the edge, not just one latch plate. Pair it with laminated or tempered glass and you’ve got an entry system that’s genuinely difficult to force. We’re not saying it’s a vault door, but it’s a real step up from whatever standard builders put in.

Color & Glass Options

The finish list includes Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Black is the current favorite for the modern farmhouse style we see all over East Dallas and the northern suburbs. Pure White reads clean and crisp on a traditional brick colonial in Lake Highlands. Anodized Silver and Bronze are quieter options that blend into mid-century builds across North Dallas, while Champagne gives a warmer metallic note that works well with limestone exteriors. Teak Wood is the choice when you want the grain and tones of a wood entry door without the yearly refinishing, and it fools people from ten feet away.

Glass comes down to two questions: how much privacy do you need, and how hard is the Texas sun hitting this wall? Clear glass maximizes light, but makes everything inside visible from the street. Frosted and Obscure glass give privacy while keeping the glow. Low-E is the energy workhorse, cutting solar heat gain on west-facing entries, which matters a lot for doors on west walls in Dallas where afternoon sun is relentless. Tempered glass is safety rated, and laminated glass adds both impact resistance and noise reduction. Most entry doors in Dallas should run Low-E as the base, and we’ll help you build from there.

Installation by Meridian Windows and Doors Dallas in Dallas

A door is only as good as the crew that puts it in, and this is the part where we earn our keep. Meridian Windows and Doors Dallas installs the VLX 100 per AAMA 2400/2410 standards, which is the recognized benchmark for window and door installation in residential construction. The process starts with a pre-install inspection of the rough opening, checking for rot, out-of-square framing, and moisture issues before the old door comes out. Once the opening is prepped, we set the frame level, plumb, and square, using shims where needed so the door operates correctly from day one and doesn’t develop sag later.

Every perimeter joint gets AAMA 812 low-expansion foam sealant, which fills the gap between the frame and the rough opening without pushing the frame out of alignment. Low-expansion is the key word there; the wrong foam can bow an aluminum frame and ruin the door’s operation. After the foam cures, we run a final water test around the full perimeter, checking that no water is finding a path behind the frame. Then we clean the job site, haul the old door away, and walk you through the operation and hardware adjustment. Dallas building codes and the North Texas climate both demand a well-sealed opening, and we’ve been doing this long enough that the process is routine.

One more thing that matters: improper installation voids the manufacturer warranty on the door itself. ViewLux warranties the product, but only when a qualified installer does the work per their standards. We’re the authorized partner in Dallas, which means our install does not put your warranty at risk.

Frequently Asked Questions – VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door?
Lead time is typically 3 to 5 weeks from order confirmation to delivery at our Dallas warehouse, depending on the glass and finish combination. Custom finishes and laminated glass can extend that. Call (325) 309-2639 and we’ll give you a current lead time for your exact build.

Does the VLX 100 Swing / Entry Door qualify for energy tax credits?
It can, depending on the glass package. Doors with qualifying Low-E glass that meet the current ENERGY STAR criteria for the South-Central climate zone may be eligible for a federal energy tax credit. We’ll help you confirm your glass selection against the current program requirements before you order.

What warranty comes with the VLX 100 Swing / Entry Door?
The manufacturer provides a product warranty on the door and hardware, and our installation carries its own workmanship warranty. The manufacturer warranty is only valid when installed by an authorized partner like Meridian Windows and Doors Dallas. We’ll put all warranty terms in writing on your quote. Call us for details.

Can I customize the size of the VLX 100 Swing / Entry Door?
Yes, within the 48-inch maximum leaf span. The system is built to your rough opening dimensions, so odd-sized openings in older Dallas homes are usually not a problem. If your opening is wider than 48 inches, we can pair the swing door with sidelights or consider a different ViewLux configuration.

How do I maintain an aluminum frame door?
Wipe the frame and glass with mild soap and water two or three times a year, and keep the track and sill clear of dirt and debris. Anodized finishes are extremely durable, and powder-coated finishes don’t need repainting. Lubricate the multi-point hardware annually with a dry silicone spray. That’s the whole maintenance routine, and it beats scraping and repainting a wood door every few Dallas springs. Call (325) 309-2639 if you need a replacement weather gasket or a hardware adjustment.

Get a Quote – VLX 100 Swing / Entry Door in Dallas

If you’re in Dallas, TX and you’re considering the VLX 100 Swing / Entry Door, the next step is a free on-site measurement. We’ll measure your opening, verify clearances, review glass and finish options, and hand you a written line-item quote with no surprises later. Call Meridian Windows and Doors Dallas at (325) 309-2639 to schedule your free estimate.

Written by the team at Meridian Windows and Doors Dallas, authorized ViewLux installation partner serving Dallas, TX and surrounding communities.
